305×305×13mm TPR Outdoor Safety Flooring Tile for Kindergarten & Nursery

Key Features & Benefits

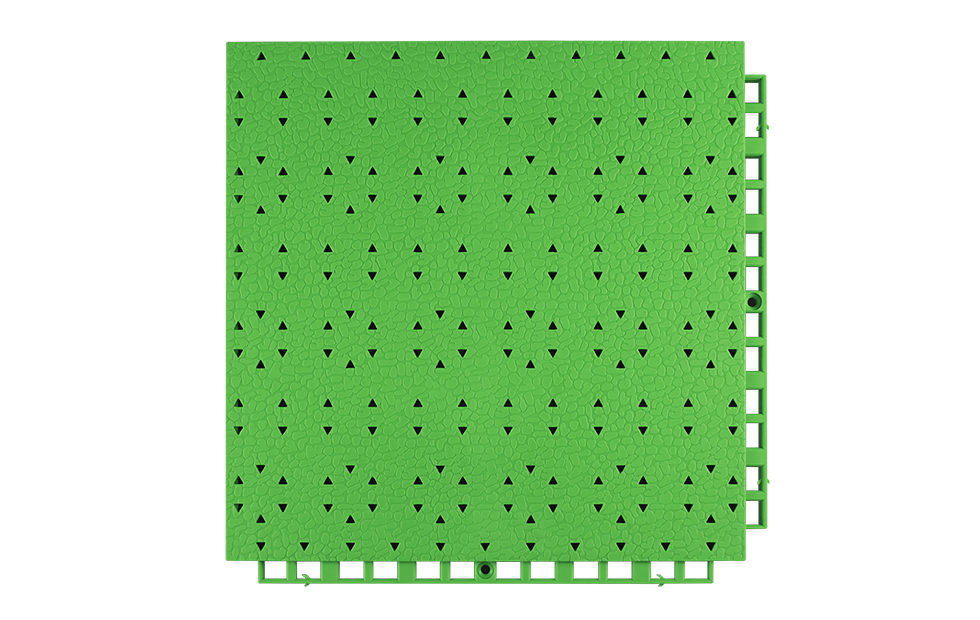

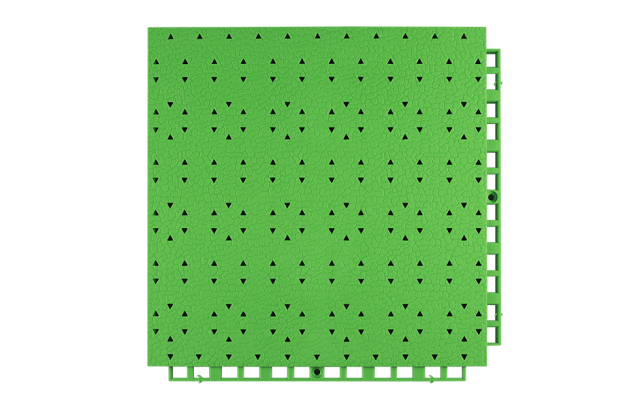

• Gem-textured surface provides multi-directional grip for children's footwear: The faceted gem pattern creates contact relief across multiple angular planes, maintaining frictional grip under a wider range of foot-approach angles than linear or single-axis ridge textures, relevant for the unpredictable foot strike patterns of young children during active outdoor play.
• Triangular row drainage holes with auxiliary drainage grooves form a two-tier fluid evacuation system: Primary drainage is handled by the triangular through-holes that penetrate the tile body; the auxiliary grooves on the tile surface channel surface water toward those holes, combining surface runoff direction with vertical drainage for faster post-rainfall drying on active kindergarten outdoor areas.

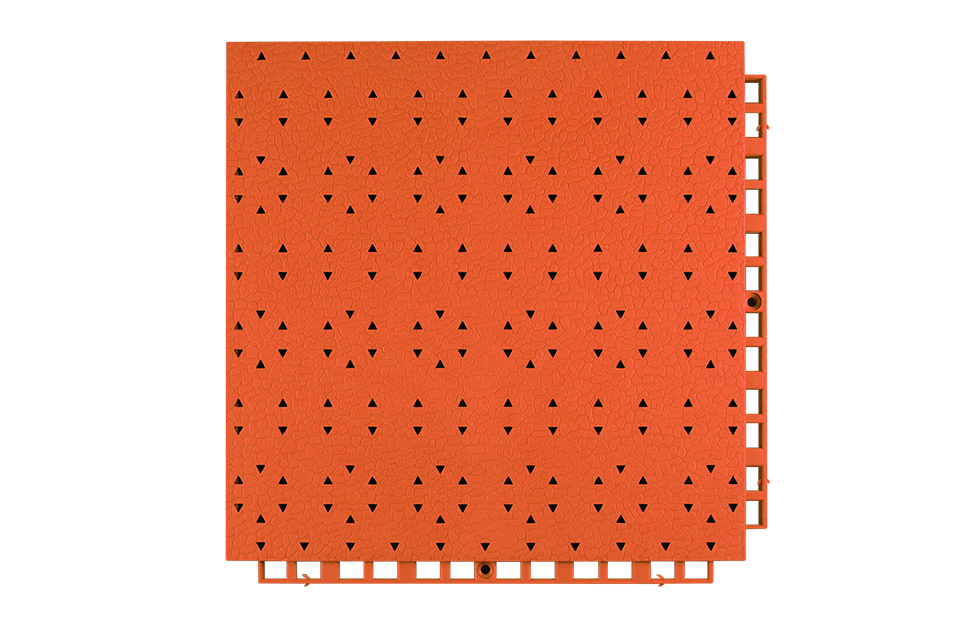

• Patchwork design manages thermal expansion and contraction across large installed areas: The patchwork joint geometry allows adjacent tiles to accommodate dimensional change from temperature cycling without transmitting buckling stress through the connection perimeter, preventing surface deformation on large outdoor play areas subject to high daily or seasonal temperature variation.

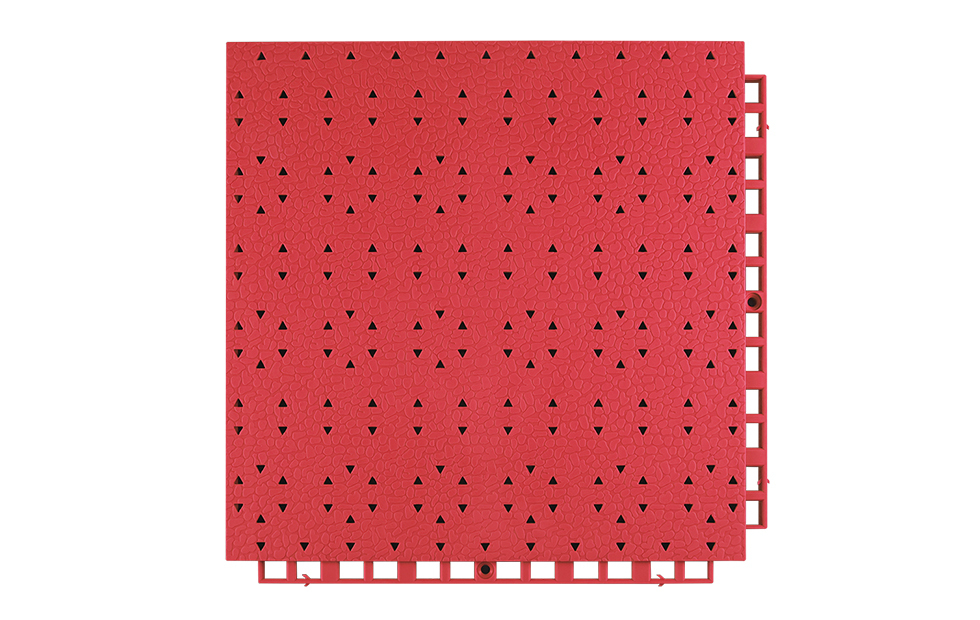

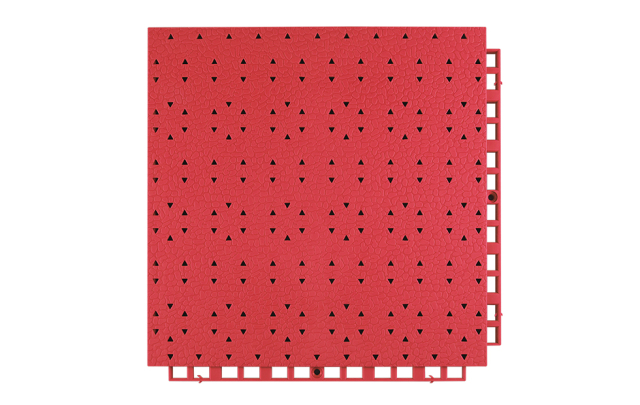

• Cylindrical ring bottom with cross ribs distributes impact loads and maintains substrate clearance: The cylindrical ring geometry creates a void-supported base structure that absorbs dynamic loading through controlled ring-wall deformation; the cross rib support feet maintain a consistent air gap between the tile underside and the substrate, supporting both drainage and sub-tile ventilation.
• Operating range of -40°C to 100°C with confirmed low-temperature performance: The material retains elastic and dimensional stability at the low end of this range, preventing the surface brittleness that can increase fall injury risk on rubber or synthetic surfaces in cold-climate outdoor kindergarten environments during winter months.
• 100% recyclable TPR construction for institutional sustainability compliance: The thermoplastic composition supports end-of-life material reprocessing, enabling school district and municipal procurement teams to meet green building or institutional environmental criteria without compromising surface safety performance.

Applications

1. Kindergarten outdoor activity spaces: Installed as a modular safety surface in the outdoor play and activity zones of kindergarten facilities under school district procurement programs requiring documented fall protection and anti-slip performance for early-childhood use.
2. Nursery school and early childhood center outdoor yards: Deployed in nursery school exterior activity areas where the surface must meet child safety standards, drain rapidly after rainfall, and withstand continuous outdoor exposure year-round without surface degradation.
3. Municipal and community playground safety surfacing: Specified as a modular safety tile under and around play equipment in publicly funded community playgrounds where critical fall height requirements and wet-condition anti-slip performance are primary tender evaluation criteria.
4. Preschool rooftop or courtyard activity areas: Used as a weather-resistant, thermally stable surface on rooftop or enclosed courtyard play areas in urban school facilities where direct sun exposure and temperature cycling create higher thermal expansion demands than at-grade installations.
5. After-school and childcare facility outdoor zones: Installed in the outdoor recreation areas of after-school programs and private childcare facilities where a durable, low-maintenance safety surface is required to reduce fall injury risk during unstructured play activity.

FAQ

Q1: What fall protection performance does this tile provide for children, and how is it verified?

The tile is designated for safer fall protection for children in kindergarten and nursery school outdoor activity spaces, and its structural fall attenuation mechanism operates through two elements: the cylindrical ring bottom, which deforms elastically under the dynamic load of a falling child, and the 13mm TPR material body, which provides cushioning through bulk elastic compression. A specific critical fall height (CFH) value or impact attenuation percentage has not been confirmed in the available product specification; this is a critical data gap for buyers procuring for early-childhood facilities in jurisdictions where outdoor play surfaces are subject to mandatory safety standards such as EN 1177 or equivalent. Buyers should request the applicable test report — [Insert Certification / Critical Fall Height Rating if Available] — from the supplier before finalizing specification, and confirm that the measured CFH covers the installation height of any adjacent play equipment. Procurement without a verified CFH value may expose the facility operator to liability in the event of a fall injury.

Q2: How does the gem-textured surface maintain anti-slip performance for children in wet outdoor conditions?

The gem-textured surface pattern creates a faceted, multi-planar contact geometry across the tile face — unlike a single-direction ridge or hexagonal repeat, the gem facets present grip-active relief to foot contact from multiple approach angles. This is particularly relevant for young children whose foot placement during running and play is less consistent than adult athletic movement, meaning the surface must provide grip regardless of the angle and direction of foot strike. The anti-slip performance mechanism is geometric and structural rather than coating-dependent, so it does not degrade through normal weathering, UV exposure, or cleaning cycles over the tile's service period. Buyers requiring documented wet-condition slip resistance data for tender submissions should request the applicable anti-slip test result — [Insert Certification / Test Rating if Available] — from the supplier.

Q3: How do the triangular row drainage holes and auxiliary drainage grooves work together to evacuate fluid from the play surface?

The drainage architecture in this tile uses two complementary mechanisms operating at different surface scales. The auxiliary drainage grooves on the tile face act as surface-level collection channels that direct standing water from across the tile surface toward the triangular row drainage holes. The triangular drainage holes then pass that water vertically through the 13mm tile body to the substrate layer below. This two-tier system — surface runoff direction followed by vertical through-hole evacuation — allows the tile face to clear water faster than a through-hole-only or groove-only design, reducing the window of time during and after rainfall when the surface presents a slip hazard to children. Adequate sub-tile drainage depends on the permeability or drainage gradient of the underlying substrate; buyers should confirm that the base layer (typically concrete or compacted aggregate) is specified to receive and disperse the drained water volume for their expected rainfall intensity.

Q4: How does the patchwork design manage thermal expansion and contraction, and why does this matter for kindergarten outdoor installations?

Thermoplastic rubber tiles expand and contract in response to ambient temperature change; on outdoor kindergarten play areas — which are typically large, fully exposed to direct sun, and installed without overhead shade structures — the daily and seasonal temperature cycling can be substantial, particularly in climates with cold winters and hot summers. Without accommodation for this movement, rigid-perimeter interlocking tiles on large installed areas can buckle, develop raised joints, or experience connection separation as cumulative thermal displacement builds up across the tile array. The patchwork design addresses this by incorporating a joint geometry that allows each tile to move slightly relative to its neighbors within a controlled dimensional tolerance, absorbing expansion and contraction forces at the joint level rather than transmitting them as stress through the tile body. The -40°C to 100°C confirmed operating range means the material and connection geometry have been specified to function across the full thermal envelope relevant to outdoor early-childhood facility deployments in most geographic markets.
